Security leaders in the healthcare industry know the common refrain about medical devices: legacy technology permeates, none of it was meant to be connected to the internet, and all of it is too expensive to replace. Underlying this dynamic is the reality that many medical devices contain serious vulnerabilities, some of which have known exploits in the wild. Replacing devices, meanwhile, hinges on component failures rather than cybersecurity concerns—even though some of these vulnerabilities could lead to negative patient outcomes.
This is the backdrop for Team82’s first healthcare cybersecurity report. Available now, the State of CPS Security Report: Healthcare 2023 puts real numbers behind the vulnerabilities and architectural weaknesses that are not only endangering the availability and reliability of life-saving medical equipment, but also patient safety.
We urge you to download the report and take time to examine our findings; we believe healthcare delivery organizations are at a pivotal point. Security leaders and medical device manufacturers can no longer be reactive about cybersecurity. Patient safety as it relates to cyber must be a core business consideration for HDOs, and security must inform decision-makers, policy-makers, and vendors alike.
Let’s examine some of our key findings:
One important data source for this report was CISA’s Known Exploitable Vulnerabilites (KEV) catalog, a database of vulnerabilities that have been publicly attacked. From our research, we discovered that 63% of KEVs tracked by CISA can be found on healthcare networks, 23% of medical devices (imaging systems, clinical IoT devices, surgical equipment) have at least one KEV, and 14% of electronic health record systems.
We break that down further, below.
Patching vulnerabilities in medical devices is complex; while many medical device manufacturers develop on Windows or Linux, for example, two platforms that are regularly updated, the same capabilities are often not built into medical devices. Patching is often an expensive add-on support contracts, according to HDOs we spoke to. HDOs must often rely on compensate controls to mitigate the exposure and potential impact of these vulnerabilities if they’re exploited. MDMs, for their part, argue that because of the Food and Drug Administration’s lengthy device certification process they are concerned about breaking FDA-certified functionality and maybe be hesitant about investing in complete security testing.

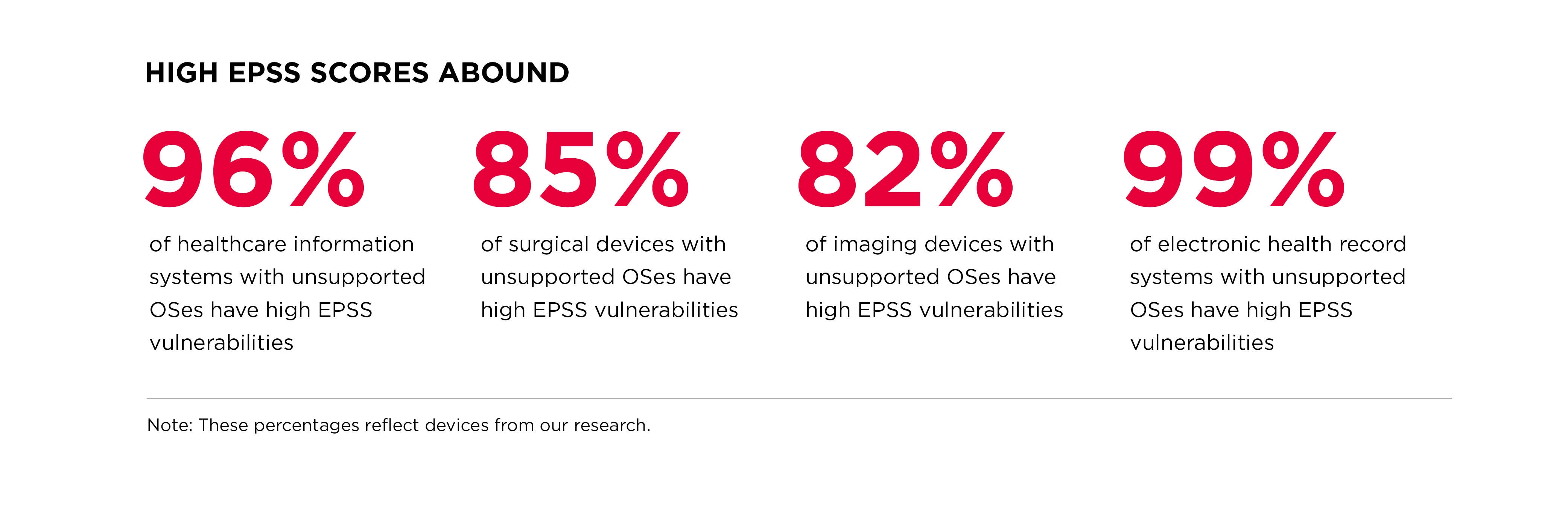

In addition to KEVs, we discovered devices containing vulnerabilities that have a high Exploit Prediction Scoring System (EPSS) score. These scores, as determined by FIRST, estimate the probability of a vulnerability being exploited within 30 days of public disclosure (EPSS scores do not present a complete picture of risk and should be a consideration along with other metrics when prioritizing vulnerability remediation and mitigation options).
We discovered high EPSS scores especially rampant in hospital systems and medical devices running on unsupported operating systems, those considered end-of-life by a MDM and no longer supported with feature or security updates.
We also found relatively high numbers of imaging devices (MRIs, CT scanning machines) to contain vulnerabilities with high EPSS score, and even surgical devices, and other patient support systems.

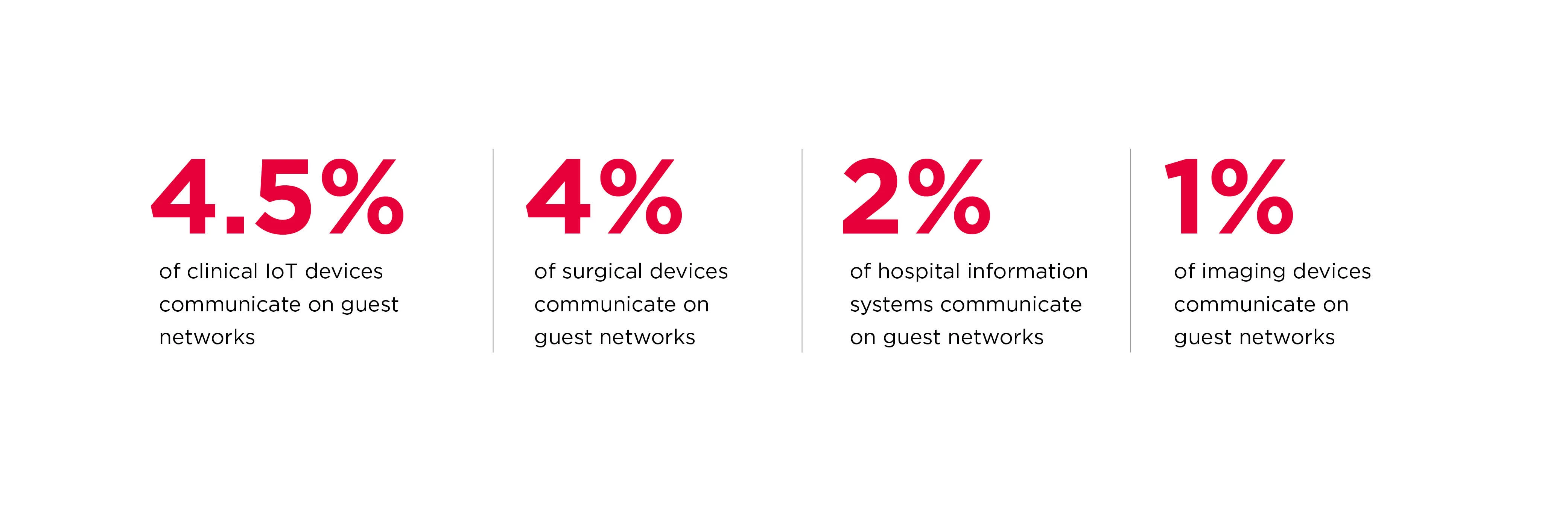

The proliferation of remotely controleld and monitored medical devices has introduced weaknesses in network architectures that put devices and patienst at risk. For example, our research shows a number of life-saving medical devices—including surgical equipment–accessible from networks labeled “guest networks” by hospitals. A skilled attacker can bridge the two networks and burrow deeper into the internal network.

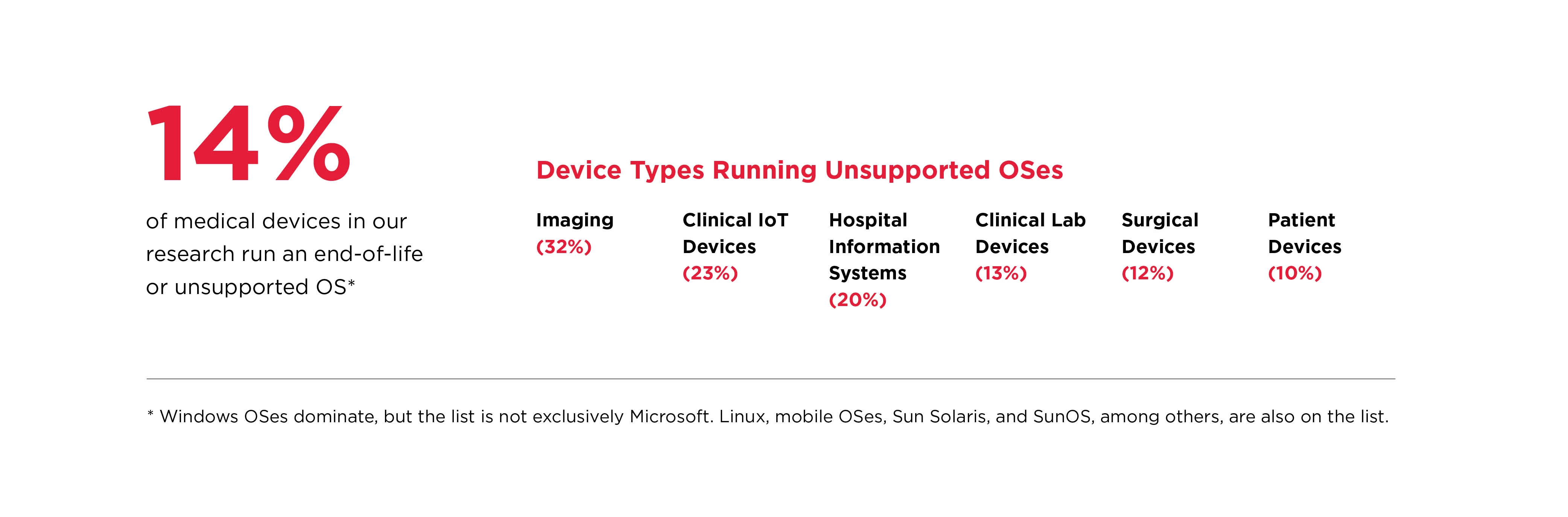

Our research shows that legacy medical devices running on unsupported and/or unmanaged operating systems are prevalent on hospital networks. These systems are considered end-of-life by their respective vendors and are no longer supplied with security or feature updates. Below are some data points around legacy systems from our research.
CWE-121 STACK-BASED BUFFER OVERFLOW:
Affected Vertiv products contain a stack based buffer overflow vulnerability. An attacker could exploit this vulnerability to gain code execution on the device.
Vertiv recommends users take the following actions:
CVSS v3: 9.8
CWE-288 AUTHENTICATION BYPASS USING AN ALTERNATE PATH OR CHANNEL:
Affected Vertiv products do not properly protect webserver functions that could allow an attacker to bypass authentication.
Vertiv recommends users take the following actions:
CVSS v3: 9.8
CWE 287: Improper Authentication
An Improper Authentication vulnerability exists in Danfoss AK-SM8xxA Series, resulting in an authentication bypass. Install the latest patch with number 4.2 to remediate this vulnerability. This flaw could enable an attacker to generate a web report that discloses sensitive information such as internal IP addresses, usernames, store names, and other sensitive information.e
CVSS v3: 8.2
CWE-798 USE OF HARD-CODED CREDENTIALS:
In Optigo Networks ONS NC600 versions 4.2.1-084 through 4.7.2-330, an attacker could connect with the device's ssh server and utilize the system's components to perform OS command executions.
Optigo Networks recommends users implement at least one of the following additional mitigations:
CVSS v3: 9.8
CWE-78 Improper Neutralization of Special Elements used in an OS Command:
A remote unauthenticated attacker who has bypassed authentication could execute arbitrary OS commands to disclose, tamper with, destroy or delete information in Mitsubishi Electric smartRTU, or cause a denial-of service condition on the product.
Mitsubishi Electric Europe B.V. recommends that users take note of the following mitigation measures to minimize the risk of exploiting this vulnerability:
CVSS v3: 9.8
